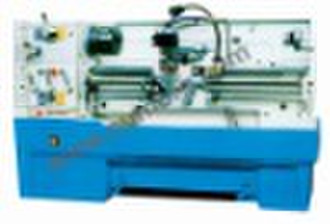

Lathe

lathe SP2113 Spec. Swing over bed: 410mm Swing over cross lide: 255mm Swingin gap: 580mm Lengthof gap: 250mm Distance between centers: 1000mm Center height: 520mm/20.5" Width of bed: 250mm Spindle nose: D1-6 Spindle bore: 52mm Taper of spindle bore: No.6 morse Range of spindle speed: 16 changes 45-1800rpm Max travel of compound rest: 102mm Max. travel of cross slide: 210mm Leadscrew pitch: 4TPI Max section of tool: 20x20mm Longitudinal feeds range: 0.05-1.7mm/rev Cross feeds range: 0.025-0.85mm/rev Metric threads range: 39kinds 0.2-14mm Inch threads range: 45kinhs 2-72TPI Diametrical pitches range: 21kinds 8-44 DP Module pithes range: 18 kinds 0.3-3.5MP Dia. of tailsotck sleeve: 50mm Travel of tailstock sleeve: 120mm Morse taper of tailstock sleeve: No. 4 morse Cross adjustment: ±13mm Power of main motor: 2.8/3.3KW(3.8/4.5HP), 3PH or 5 HP overall dimension (LxWxH): 1940x850x1320mm Packing size(LxWxH): 2060x900x1640mm N.W/G.W.: 1550/1800kg Standard accessories: 300mm face plates, follow rest, thread chasing dial, steady rest, oil gun, operation manual, MT6/4 sleeve and MT4 center, one set of wrenches, 200mm 3-jaw chuck and adapter, 320mm four jaw chuck and adapter Optional accessories: 200mm driving plate, quick change tool post, taper turning attachment
